Liquid-Applied Flat Roofing · Large grocery store
Liquid-Applied Flat Roofing
A grocery store's large flat roof was waterproofed with a liquid-applied system laid over the existing roof, and textured walkway routes were added to the rooftop equipment.
Project detail

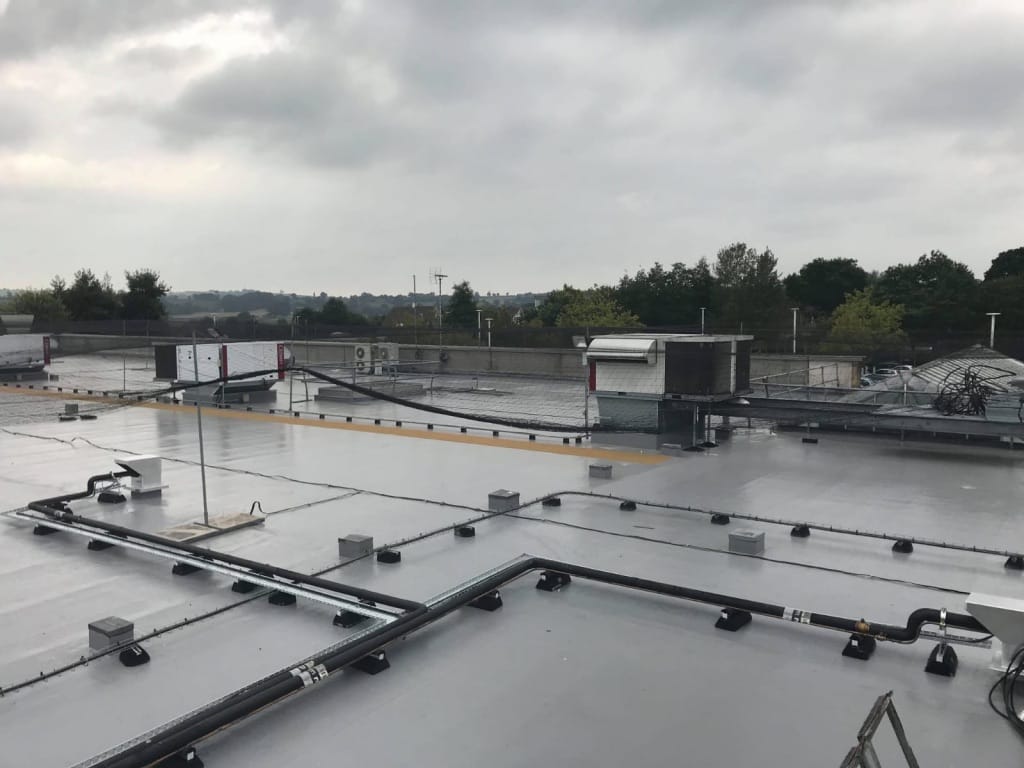

The store’s flat roof is large and busy. Rooftop mechanical units, pipe and cable runs on supports, and edge guardrails cover much of the surface, and maintenance staff and contractors need regular access to the equipment. Every support and upstand is a detail the waterproofing has to seal.
Project detail
A liquid-applied waterproofing system was laid over the existing roof surface as an overlay, so the old roof stayed in place as the base. The liquid membrane was carried around the equipment supports and up the upstands, forming one continuous waterproof layer without seams.

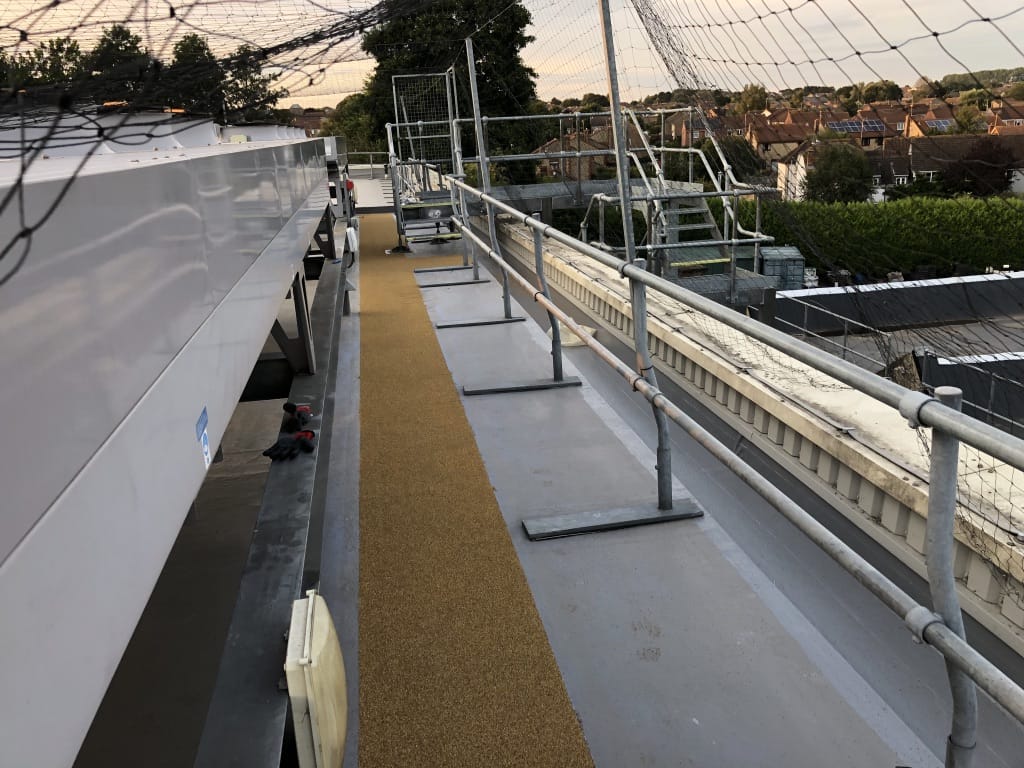

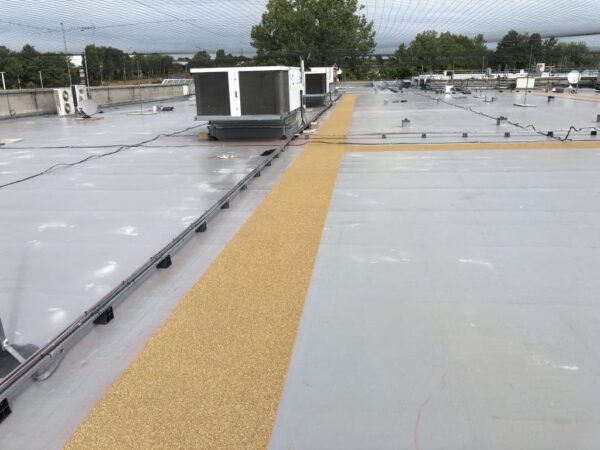

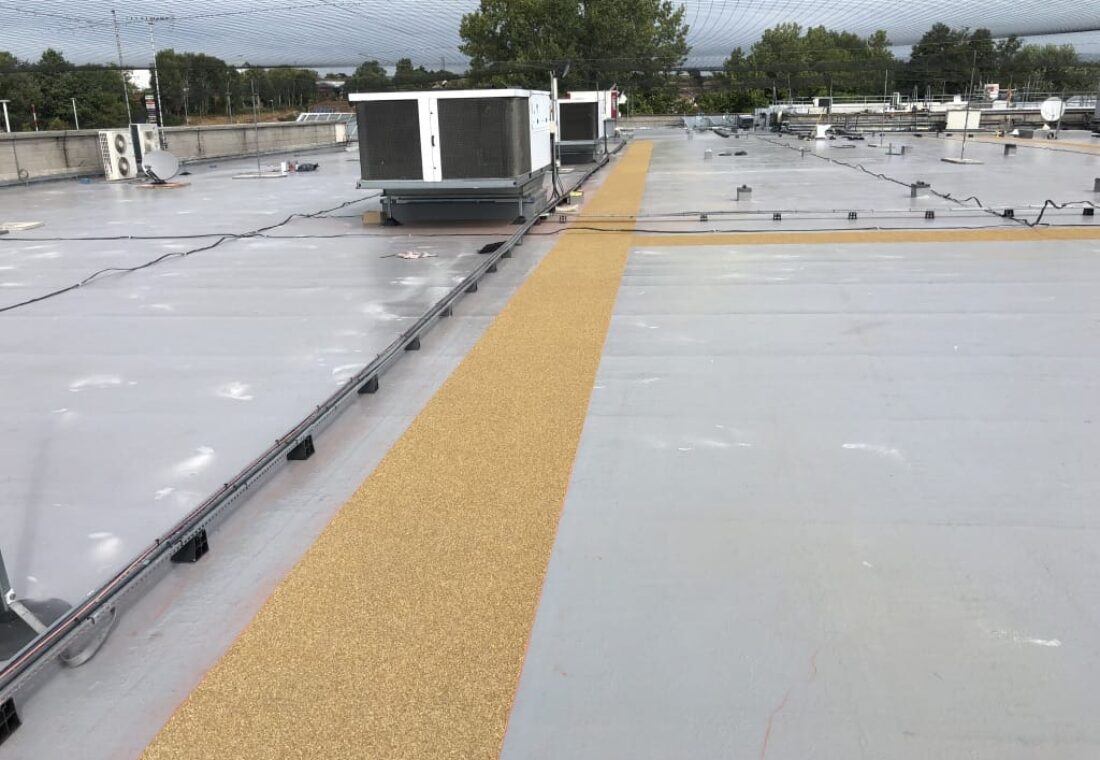

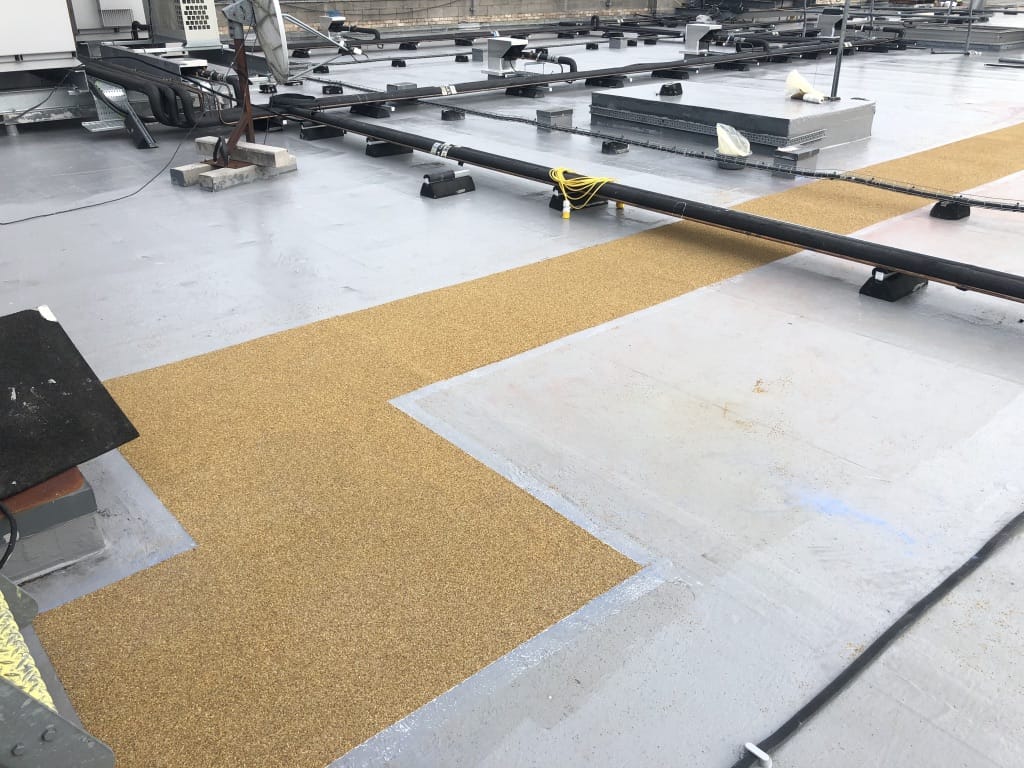

Walkway routes with a textured, contrasting finish were then laid on top of the membrane, marking the paths that people use to reach the rooftop equipment.
Project detail
On a roof with many supports, pipes and upstands, a liquid membrane can be worked around each detail as part of the same coat, instead of cutting and welding a separate flashing for every one. An overlay also avoids stripping the roof above an open store, which keeps noise, debris and the risk of leaks during the work to a minimum. See liquid-applied roofing and flat roof waterproofing.
Project detail
Foot traffic is one of the main causes of wear and damage on flat roofs. Marked walkways keep people on protected routes, take the wear off the waterproofing, and show anyone on the roof the safe way to the equipment, away from the edges.
Project detail
A liquid-applied roof can be maintained with the same system it was built from. Worn or damaged areas are cleaned and recoated, and supports or penetrations added later are sealed with the same liquid membrane. Keeping foot traffic on the walkways, and checking the details around the equipment after any rooftop work, are the simplest ways to extend its life.
