Commercial Metal Roof Retrofit in Texas

Renew your existing commercial roof with a new metal covering. Metal-over-metal retrofit, insulation upgrades and complete roof refurbishment.

Renew your metal roof with a roof-over-roof system

A metal roof retrofit puts a new metal roof over the one you already have. Steel framing is fixed through the old roof into the building’s existing purlins, and new metal panels go on top. The old roof stays in place as a lower layer, the building stays in use, and the space between the two roofs can take new insulation. Total Cladding and Roofing plans and installs metal roof retrofits and overcladding for warehouses, workshops, factories and other commercial buildings across Texas.

It is the right answer when an existing metal roof is past patching but the building and its structure are sound: leaking fasteners and laps across the whole roof, corrosion spreading from the edges, or a roof that has been coated and repaired too many times. It is the wrong answer when the structure cannot take the added weight, or when the old roof hides wet insulation or damaged supports that need fixing first. Working out which one you have is the first step.

Request a metal roof retrofit quote or call (210) 775-0995.

Project pictured: our completed Powell McNeil overcladding project in the UK.

Industrial unit with a new metal roof installed over the old roof

Roof Hugger and other retrofit framing

The framing is chosen to suit the existing roof and the new one.

Notched sub-purlins (Roof Hugger)

Roof Hugger sub-purlins are zee sections with notches cut to match the ribs of a specific existing panel profile. They sit down over the old ribs and fasten through into the purlins below, so the new roof can sit low, close to the old one. Because each notch pattern matches a particular profile, the existing panel has to be identified correctly before anything is ordered. Our roof profile database helps match common exposed-fastener profiles by rib spacing and height.

Zee-girts and spacer systems

Where a deeper gap is wanted, usually to fit more insulation, plain zee-girts or proprietary spacer brackets raise the new roof further above the old one. The depth is set by the insulation thickness and the panel’s support needs.

Slope build-up framing

On a low-slope roof that ponds water, the framing can be built taller at one end to give the new metal roof a proper fall. This turns a problem flat roof into a pitched metal roof without removing the original deck.

You do not need to choose a framing system before you call. We measure the existing roof, check the supports and recommend the arrangement that fits.

Is your building a good candidate?

A retrofit suits a building when most of these are true:

  • The primary structure and purlins are in sound condition, with no significant rust-through, distortion or past overloading.
  • The structure can carry the added weight of the framing, new panels and any insulation, which a structural check confirms before the design is fixed.
  • The existing roof is dry underneath, or wet areas can be found and dealt with before they are covered.
  • The roof shape is straightforward enough to frame over, or the awkward areas (valleys, height changes, parapets) can be detailed.
  • The building needs to stay in use, or tear-off would disturb stored goods, production or tenants.

If the purlins themselves are corroded through, the roof is carrying hidden water, or the structure cannot take more load, a full replacement is usually the better route. We will tell you that plainly if it applies.

What the survey covers

Every retrofit starts on the roof and inside the building. The survey records:

  • the existing panel profile, rib spacing and height, gauge and fastener pattern;
  • purlin size, spacing, condition and how the roof is fixed to them;
  • leaks, corrosion, loose or missing fasteners, failed laps and damaged panels;
  • signs of trapped moisture, condensation or wet insulation below the roof;
  • gutters, downspouts, skylights, roof vents, rooftop equipment and every penetration;
  • edges, ridge, eaves, walls the roof meets, and any changes in level;
  • access for lifting, deliveries and safe working at height, and how the building is used below.

That record becomes the basis for the framing design, the new roof specification and a fixed scope you can compare against other options.

How a metal roof retrofit works

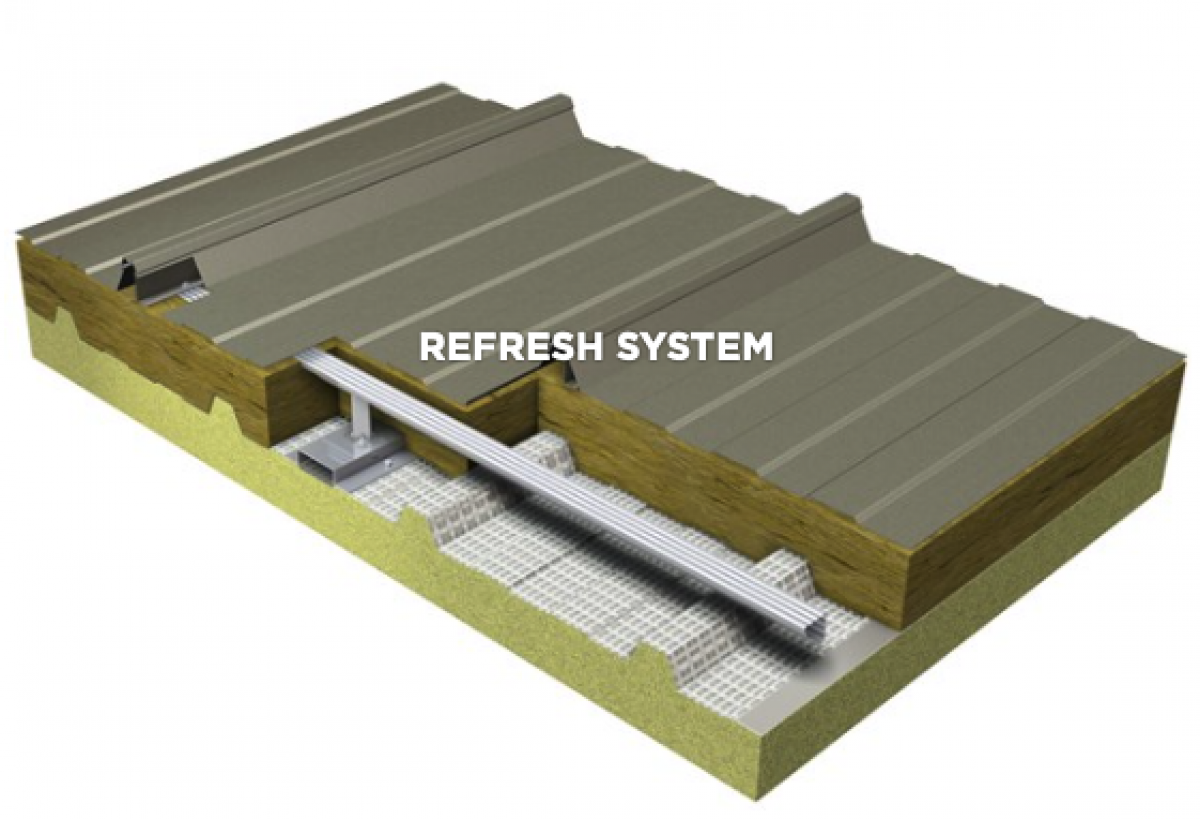

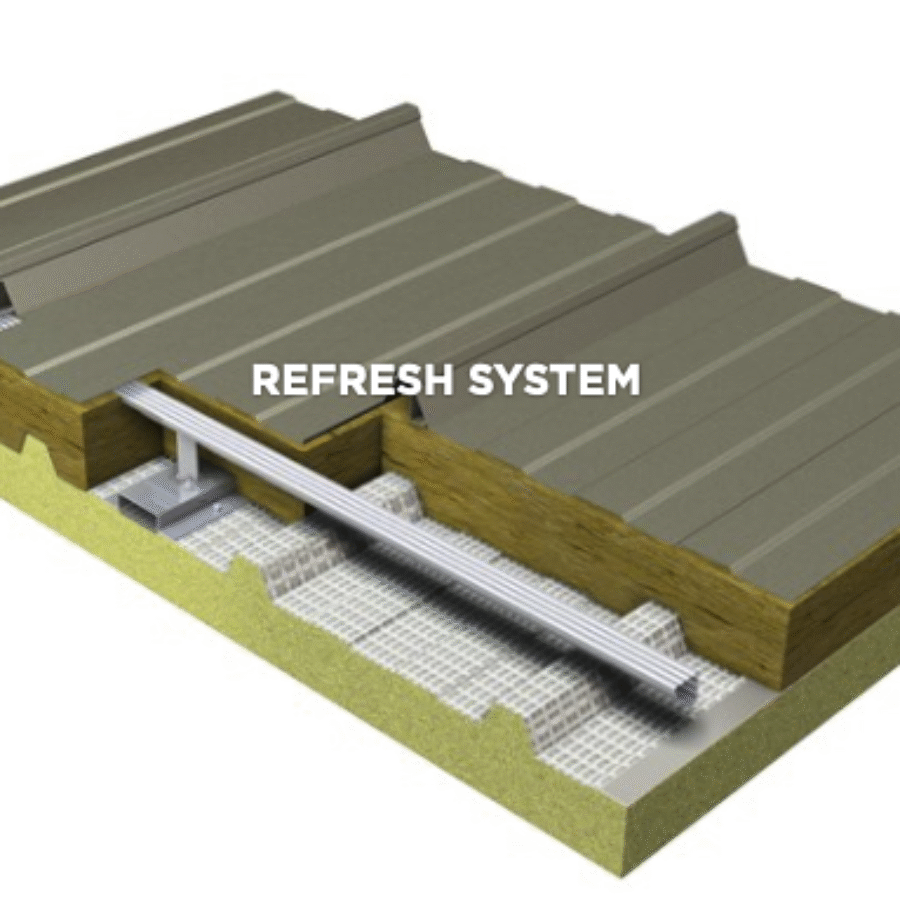

A retrofit has three layers: the existing roof, a new support framework, and the new roof covering. Each one has a job.

Because the old covering stays in place, the inside of the building is not opened to the weather during the work. That is the main reason owners of occupied warehouses and production buildings choose a retrofit over a tear-off.

The existing roof

stays where it is. Loose panels are re-fixed, open laps sealed and damaged areas repaired so it is secure under the new work. It becomes a working platform and a secondary layer, not the weatherproofing.

The support framework

is a set of steel sub-purlins or zee-girts. They sit on the old roof and are fastened down through it into the original purlins, so the new roof’s loads go straight into the building’s frame, not into the old roof sheets.

The new roof

is fixed to that framework: either an exposed-fastener panel such as R-panel or PBR, or a standing seam panel with concealed clips. Flashings, ridge, eaves, gutters and openings are all detailed new.

Insulation, heat and condensation

The gap a retrofit creates is the cheapest chance a building will get to add roof insulation. Blanket insulation laid between the framing members can bring an uninsulated or poorly insulated metal building much closer to current energy expectations without touching the interior.

In Texas heat, the new roof’s finish matters too. Light-colored, high-reflectance metal finishes reflect more sunlight and help keep the roof deck and the space below cooler. The panel manufacturers publish reflectance and emittance values for each color.

Adding insulation changes how moisture behaves between the roofs. The design has to keep warm, humid air from reaching the cold underside of the new roof, and let any moisture that does get in escape. Vapor control and, where needed, ventilation of the cavity are part of the detailed design, not an afterthought.

Retrofit for R-panel and other exposed-fastener roofs

Most of the retrofits we price in Texas are over exposed-fastener metal roofs: R-panel, PBR and similar profiles on metal buildings, workshops and warehouses. These roofs typically fail in the same way. Fastener washers harden and split, laps open, cut edges corrode and the leaks multiply until patching never catches up.

A retrofit stops chasing those leaks. The new framing fastens through the old panels into sound purlins, and the new roof can be an R-panel for value or a standing seam roof with concealed clips, which removes thousands of exposed fasteners from the weather.

If the existing roof is beyond a practical recover, we also quote commercial metal roof replacement.

Gutters, skylights and roof details

A new roof is only as good as its edges and openings, so these are planned with it:

  • Gutters and downspouts: the new roof line usually moves outward and upward, so gutters are replaced or re-set to suit it, sized for the roof area they drain.
  • Skylights and daylight panels: old translucent panels are replaced with new ones matched to the new roof profile.
  • Penetrations and curbs: vents, pipes and rooftop units need extended curbs and new flashings at the new roof level.
  • Ridge, eaves, rakes and wall junctions: new trims close the cavity, keep out birds and insects and finish the roof neatly against the walls.

Texas weather and building requirements

Retrofit roofs in Texas have to deal with hail, high winds and long, hot summers. The new roof is designed to the wind loads required by the current building code for the building’s location and height, using panel and attachment arrangements the manufacturer has tested.

On the coast, buildings in the Texas Department of Insurance designated catastrophe area need windstorm compliance for roof work. Inland, local permitting rules vary by city and county. We check the requirements for your address before the design is fixed.

How the work is planned around your operations

Your building keeps working while the roof is refurbished. Because the old roof stays on, most of the work happens above a closed roof. Planning still covers:

  • crane or lift positions, delivery times and storage space for panels and framing;
  • which areas are worked on first, so busy loading docks or production lines are disturbed least;
  • protection under rooftop openings while curbs and skylights are changed;
  • daily make-safe and weather protection at the end of each shift.

Tell us about production schedules, stored stock and sensitive areas so they are built into the plan from the start.

Retrofit, coating or replacement?

These three routes solve different problems:

  • Coating restores a roof whose panels are still sound, by repairing fasteners and seams and applying a protective coating system. It extends the life of the existing roof. See metal roof restoration.
  • Retrofit adds a new roof above an old one that is too far gone to coat, without removing it. It gives a new roof with less disruption and room for insulation.
  • Replacement removes the old roof and installs a new one in its place. It is the route when the structure, purlins or the roof underneath need to be exposed and fixed.

We assess the roof against all three and explain why one fits better than the others.

Get a price for your metal roof retrofit

The price depends on the roof area, the existing roof’s condition, the framing system, the new panel, any insulation, the edge and opening details, and access. Gutters, skylights and rooftop equipment also shape the scope.

Send us your building address and a few roof photographs if you have them. We will discuss your requirements and the next step toward a quotation covering the complete work.

Talk to our team

Request a commercial metal roof retrofit quote

Ready to renew your roof? Speak to Total Cladding and Roofing about metal-over-metal retrofit, Roof Hugger systems and commercial roof overcladding in Texas.

Request a Retrofit Quote or call (210) 775-0995.

Request a Retrofit Quote

Frequently asked questions

Commercial Roof Overlays FAQs

What is a commercial roof recover?

New roofing is installed above suitable retained roofing rather than removing the entire existing assembly.

Can every roof be recovered?

No. Existing layers, moisture, support capacity, attachment and the proposed assembly must be assessed.

Can wet insulation be left under the new roof?

It cannot simply be ignored. Its extent and removal or correction need to be addressed before recover is accepted.

Does recover add weight to the building?

Yes. The added assembly and its support and attachment requirements must be considered for the actual structure.

Can recover change roof drainage?

Yes. Added layers or a new roof level can affect drains, gutters, edge details and flow paths.

Will equipment curbs need alterations?

Possibly. Increased roof thickness can reduce flashing height or clearance and require work around equipment.

Is recover always cheaper than replacement?

No. Necessary repairs, added supports and altered details can change the comparison. Compare complete proposals.

Can the business stay open during the work?

Often, but access, local openings, noise and protection below depend on the building and installation method.

What is the difference between coating and recover?

Coating treats a prepared surface. Recover installs a new roofing assembly above retained roofing and may involve new support or insulation.

What information is needed first?

The address, existing roof construction and any drawings, leak history or prior reports. A survey may be needed before pricing.

UK refurbishment experience, a Texas office

Refurbishment specialists

Our business grew through roof and cladding refurbishment in the UK. That experience shapes the work we now offer from our Texas office.

Repair what can be retained

We investigate the roof problem and explain what can be repaired, restored or replaced, so you can decide how to invest in the building.

Roofing and cladding together

We can coordinate roof, insulation, wall panel and drainage work, including the connections where separate repairs can leave problems behind.

A plan for your working building

We agree access, work areas and protection with your site team, including any restrictions needed while the roof is opened.
